MiniCore™ RCM6700

Product Info

MiniCore™ RCM6700

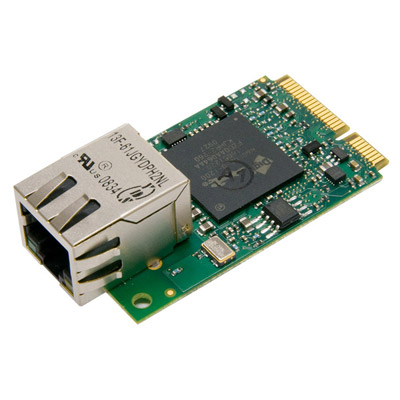

{tab Descrição} The MiniCore RCM6700 series of core modules is ideal for today's smart energy initiatives as well as a host of other applications requiring networking and device control. With plenty of configurable I/O and multiple serial ports, the RCM6700 provides connectivity and control to numerous devices, allowing for greater design flexibility without sacrificing features and cost.

Rabbit's integrated hardware and software solution allows the RCM6700 series to be fully programmable within Dynamic C®, an ANSI C compliant development environment. Complete samples and libraries are included to dramatically reduce development time from months to weeks. The iDigi™ platform eases the burden of device deployment by providing complete remote monitoring and control, thereby eliminating server maintenance and costly on-site visits.

Communication and Control

The RCM6700 series are high performance device servers which contain a multitude of device connectivity options. This includes an I2C interface, A flexible interface module, FIM which extends peripheral connectivity like CANbus, 1-Wire and SD/SDIO. 32 Configurable I/O and up to 6 serial ports, the RCM6700 series provides more capabilities from the standard device servers without sacrificing costs. The series is also pin compatible with MIiniCore 802.11 b/g modules.
{tab Modelos}

Modelos

RCM6700

RCM6710

RCM6750

RCM6760

Part Number

20-101-1318

20-101-1319

20-101-1320

20-101-1321

RCM6700 Standard Development Kit
Part Number

101-1327

RCM6700 Deluxe Development Kit
Part Number

101-1326

{tab Características}

Características

RCM6700

RCM6710

RCM6750

RCM6760

Microprocessor Rabbit® 6000 up to 200MHz
Network Interface 10/100Base-T
(Ethernet signals only)
10/100Base-T
RJ-45 connector
10/100Base-T
(Ethernet signals only)
10/100Base-T
RJ-45 connector
Flash Memory
(Code and File system)
1 MB serial Flash 4 MB serial Flash
Internal SRAM (Code and Data) 1 MB
External SRAM (Data Only) None 1 MB
Battery-Backable SRAM 32 KB
Flexible Interface Module(FIM) 400 MHz DRPIC165X CPU
1k program/192 bytes data RAM
Mass Storage On-board serial Flash
General-Purpose I/O Up to 32 parallel digital I/O
Serial Ports 6 high-speed, CMOS compatible ports, 4 configureable as clocked serial (SPI)
Serial Rate Maximum asynchronous baud rate = CLK/8
Real-Time Clock Yes
Timers Ten 8-bit timers (6 cascadable from the first), one 10-bit timer with 2 match registers
Watchdog/Supervisor Yes
Pulse Width Modulators 4 channels synchronized PWM with 10-bit counter
4 channels variable-phase or synchronized PWM with 16-bit counter
Quadrature Decoder 2-channel quadrature decoder accepts inputs from external incremental encoder modules
Input Capture 2-channel input capture can be used to time input signals from various port pins
Power 70 mA @3.3V without Ethernet
200 mA @3.3V with Ethernet while transmitting
Operating Temperature -40° C to +85° C
Supported Protocols HTTP, HTTPS, SSLv3, DHCP, UDP, TCP, SNMP, Telnet, FTP, TFTP, SMTP, POP3
Humidity 5% to 95%, non-condensing
Connectors - Headers 52-pin Mini PCI Express 52-pin Mini PCI ExpressRJ-45 10/100Base-Tconnector 52-pin Mini PCI Express 52-pin Mini PCI ExpressRJ-45 10/100Base-Tconnector
