Descrição

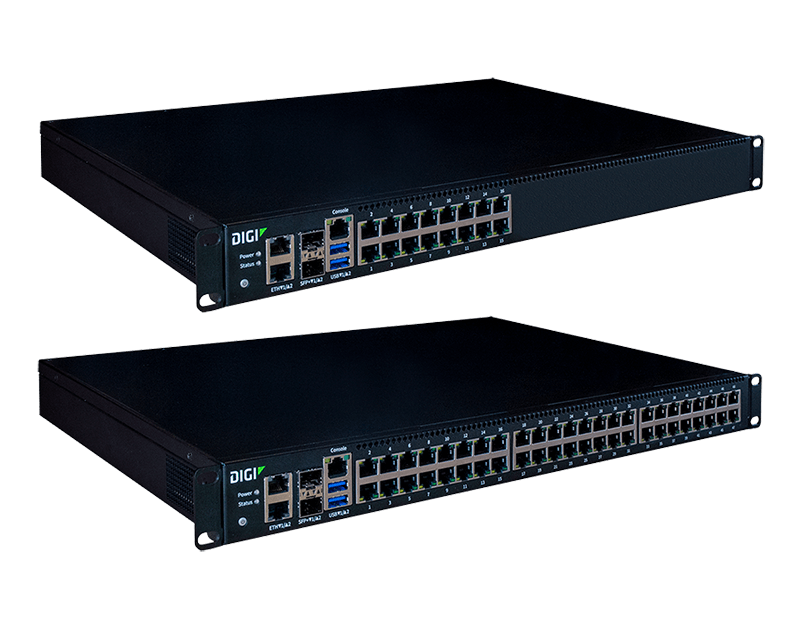

{tab Descrição} Connect IT 16/48 Console Server

Reduza o tempo de inatividade e simplifique o cabeamento, a implantação, a manutenção e o gerenciamento.

O design altamente redundante do Connect® IT 16/48 oferece segurança, com dual Ethernet, dual SFP e dual power, fornece uma solução robusta para sua infraestrutura de TI. Os kits de fonte de alimentação flexíveis oferecem a capacidade de implantar o produto em ambientes diversos. A pinagem do cabo serial reversível selecionável por software permite conectividade direta com a maioria dos dispositivos de infraestrutura de TI.

O Digi Remote Manager® (DRM) fornece um único painel de interface de vidro para todos os dispositivos na empresa e em todo o mundo, permitindo o gerenciamento de equipamentos de computação complexos, em hiper escala e de ponta.

Os modems Digi CORE ™ LTE oferecem suporte dual SIM em toda a família de roteadores corporativos Digi e agora nos produtos Connect IT 16/48. Esses produtos são gerenciados globalmente usando DRM e permitem backup de rede para entrega de dados de missão crítica para locais remotos.

As empresas de finanças, saúde, comércio global e serviços gerenciados podem usar o Connect IT 16/48 para ajudar a fornecer os mais altos níveis de confiabilidade no suporte de seus negócios essenciais.

.

Compare Console Servers



Digi Connect IT 4 Out-of-band management of network and server equipment

Digi Connect IT Mini Secure, affordable, managed out-of-band access for isolated remote IT devices

Digi Connect IT 16/48 Centrally manage routers, firewalls, servers and other critical IT infrastructure over LTE or enterprise WAN


Management Command line; Web (HTTP/HTTPS); SNMPv2 Command line; Web (HTTP/HTTPS); SNMPv2 Digi Remote Manager, Command line; Web (HTTP/HTTPS); SNMPv2
Protocols HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; Simultaneous SSH sessions on all ports HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; SSH session direct to port HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; Simultaneous SSH sessions on all ports
Power Supply External 100-240VAC, 50/60 Hz, 18 W max, 6 W typical External US Plug 100-240VAC, 50/60 Hz, 5V DC, 5W Max Internal Dual Field Replaceable 100-240VAC 50/60 Hz: Airflow: Port Side Intake; Port Side Exhaust
Serial Throughput Up to 115.2 Kbps Up to 115.2 Kbps Up to 115.2 Kbps
Ethernet Physical Layer/Data Rate (2) 10/100Base-T 10/100Base-T (2) 10/100/1G Ethernet and (2) SFP+
Serial Ports 4 1 16/48
USB Ports - (1) USB 2.0 host (2) USB 3.1 Gen 1 (Type A)



{tab Modelos}

Digi Connect IT 16/48 Part Number:
Digi Connect IT 16, console access server with 16 serial ports

IT16-1002


 Digi Connect IT 48, console access server with 48 serial ports  IT48-1002





{tab Características}

SPECIFICATIONSDIGI CONNECT® IT 16DIGI CONNECT® IT 48
CELLULAR
CORE MODULE SUPPORT (1) Digi CORE™ module compliant socket (see accessories list for recommended modules)
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP
LOCAL MANAGEMENT WebUI (HTTPS); CLI (SSH, serial console, direct SSH to serial ports)
MANAGEMENT/ TROUBLESHOOTING TOOLS FTP, SFTP, SCP; Protocol analyzer with PCAP for Wireshark; event logging with Syslog and SNMP; NTP/SNTP
MEMORY 2GB RAM, 8GB flash
SECURITY Implements Digi TrustFence® and supports Digi Remote Manager (DRM)
CONNECTIONS
SFP+ (2) 10 Gb capable SFP+ sockets
ETHERNET (2) 10/100/1000 Ethernet
SERIAL (16) RS-232 serial RJ-45 (support standard or reversed mode) (48) RS-232 serial RJ-45 (support standard or reversed mode)
CONSOLE (1) RS-232 serial RJ-45 console port (1) RS-232 serial RJ-45 console port
USB (2) USB 3.1 Gen 1 (Type A)
SD (1) SD/SDHC/SDXC socket
PHYSICAL
DIMENSIONS (L x W x H) 444 mm x 300 mm x 44 mm (17.48 in x 11.81 in x 1.73 in)
WEIGHT 5.10 kg (11.25 lbs) with power supply kit installed 5.28 kg (11.65 lbs) with power supply kit installed
STATUS LEDS Front: device power, status; (2) Ethernet (link/active) console (Tx/Rx); 16/48 (Tx/Rx); Back: (2) PSU, status, WWAN signal/service
POWER REQUIREMENTS
POWER INPUT Redundant 100-240 V ~ 50-60 Hz 2.4 A max for each power supply
POWER CONSUMPTION 30.5 W 39 W
POWER SUPPLY KITS Port side intake or port side exhaust redundant replaceable power supplies (device requires one power supply kit, see accessories)
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 50° C (32° F to 122° F)
STORAGE TEMPERATURE 0° C to 70° C (32° F to 158° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/ IMMUNITY CE, FCC Part 15 Class A, IC, AS/NZS CISPR 22, EN55024, EN55032



ENTERPRISE SOFTWAREDESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, OpenVPN client and server; Cryptology: SHA-1, MD5, SHA2-256, SHA2-384, SHA2-512, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, TOTP, HOTP; X-509 certificates; MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Network protocols: DHCP, PPPoE, Ethernet, cellular; Routing protocols: RIP (v1, v2), OSPF, BGP, Babel, IS-IS; RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, Ping, DNS, custom; Automatic failover/failback to second GSM network/standby APN
OTHER PROTOCOLS DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED
