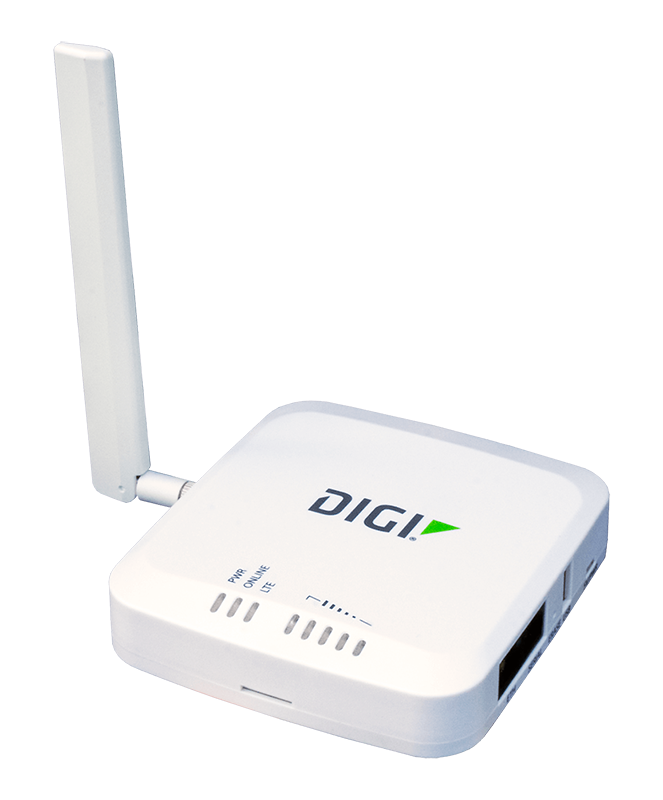

Digi Connect IT Mini

Digi Connect IT Mini
Descrição

{tab Descrição} Connect IT Mini Console Server

O Digi Connect IT Mini é um servidor de acesso ao console remoto que fornece uma operação segura e inteligente aos ativos de infraestrutura de data center críticos, tais como: roteadores, servidores, switches, controladores de energia e storage. Trabalhando em locais remotos out-of-band (OOB), o Digi Connect IT Mini garante um tempo de atividade contínuo e permite a conectividade de backup para gerenciar e corrigir problemas com a infraestrutura de TI.

Para empresas que precisam de acesso serial para monitoramento remoto de equipamentos, o Digi Connect IT Mini oferece uma solução completa.


Compare Console Servers



Digi Connect IT 4 Out-of-band management of network and server equipment

Digi Connect IT Mini Secure, affordable, managed out-of-band access for isolated remote IT devices

Digi Connect IT 16/48 Centrally manage routers, firewalls, servers and other critical IT infrastructure over LTE or enterprise WAN


Management Command line; Web (HTTP/HTTPS); SNMPv2 Command line; Web (HTTP/HTTPS); SNMPv2 Digi Remote Manager, Command line; Web (HTTP/HTTPS); SNMPv2
Protocols HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; Simultaneous SSH sessions on all ports HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; SSH session direct to port HTTPS/HTTP, SSH/Telnet to a customizable menu; SSH/Telnet directly to the port by name, port specific socket or specified IP number per port; Multiple users per port; Simultaneous SSH sessions on all ports
Power Supply External 100-240VAC, 50/60 Hz, 18 W max, 6 W typical External US Plug 100-240VAC, 50/60 Hz, 5V DC, 5W Max Internal Dual Field Replaceable 100-240VAC 50/60 Hz: Airflow: Port Side Intake; Port Side Exhaust
Serial Throughput Up to 115.2 Kbps Up to 115.2 Kbps Up to 115.2 Kbps
Ethernet Physical Layer/Data Rate (2) 10/100Base-T 10/100Base-T (2) 10/100/1G Ethernet and (2) SFP+
Serial Ports 4 1 16/48
USB Ports - (1) USB 2.0 host (2) USB 3.1 Gen 1 (Type A)



{tab Modelos}

Digi Connect IT Mini Part Number:
Digi Connect IT Mini remote console access server

IT01-M100-GLB








{tab Características}

SPECIFICATIONSDIGI CONNECT® IT MINI
CELLULAR LTE Cat-M/NB-IoT/2G; LTE bands: B1, B2, B3, B4, B5, B8, B13, B18, B19, B20, B26, B28; 2G bands: B2, B3, B5, B8
MODULE SUPPORT Global LTE Cat-M/NB-IoT
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud-based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (console, SSH)
NETWORK
ETHERNET RJ-45; 10/100 Mbps (auto-sensing)
CONNECTIONS
SERIAL/USB Serial port RJ-45 RS-232 and USB 2.0 host port
PHYSICAL
DIMENSIONS (L x W x H) 127 mm x 127 mm x 25 mm (5.0 in x 5.0 in x 1.0 in)
WEIGHT 0.37 kg (13 oz)
STATUS LEDS Power, online, LTE, (5) signal strength
POWER REQUIREMENTS
POWER INPUT 5.0 VDC, 1 A; 100-240 VAC
ENVIRONMENTAL
OPERATING TEMPERATURE 0º C to 40º C (32º F to 104º F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR CERTIFICATIONS Verizon, AT&T, PTCRB
SAFETY, ENVIROMENTAL, EMISSIONS/IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES03(B)/NMB-3(B)


ENTERPRISE SOFTWAREDESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3; IPSec & OpenVPN tunnels; Cryptology: SHA-1, SHA-2, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, OSPF, BGP, RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, automatic failover/failback to secondary connection
OTHER PROTOCOLS QoS via TOS/DSCP/WRED; UDP/TCP to serial
