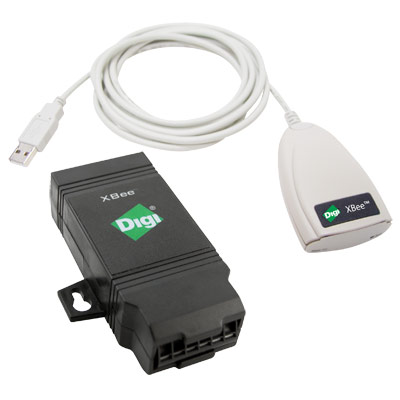

XBee & XBee-PRO 802.15.4 Adapters

{tab Descrição} Os adaptadores XBee e XBee-PRO 802.15.4 proporcionam baixo custo e baixo consumo de energia para conectar dispositivos eletrônicos em uma rede sem fio multiponto. São ideais para transformar sensores, controladores e outros dispositivos com fio de aplicações legadas em dispositivos sem fio, onde o tempo necessário para o desenvolvimento de soluções embarcadas é crítico.
{tab Modelos}

XBee-PRO 802.15.4 Adapters Norte Americano: Internacional:
XBee-PRO 802.15.4 RS-485 Adapter
XA-A14-CS3P XA-A14-CS3P
XBee-PRO 802.15.4 RS-232 Adapter
XA-A14-CS2P XA-A14-CS2P
XBee-PRO 802.15.4 USB Adapter
XA-A14-CE1P XA-A14-CE1P-J

XBee-PRO 802.15.4 Digital I/O adapter



XA-A14-CS4P XA-A14-CS4P
XStick ZB USB Adapter Norte Americano: Internacional:
XStick USB Adapter, 802.15.4
XU-A11 XU-A11

{tab Características}

Características

Features

  • General
    • Frequency: 2.4 GHz (ISM)
    • Antenna options: Integrated whip antenna
  • Performance
    • Indoor/Urban range:
      • XBee: Up to 100 ft (30 m)
      • XBee-PRO: 300 ft
    • Outdoor RF line-of-sight range:
      • XBee: Up to 300 ft (100 m)
      • XBee-PRO: Up to 1 mile
  • Transmit power output:
    • XBee: 1 mW (+1 dBm)
    • XBee-PRO: 60 mW (+18 dBm)
  • RF data rate: 250,000 bps o Receiver sensitivity:
    • XBee: -92 dBm (1% PER)
    • XBee-PRO: -100 dBm (1% PER)
  • Networking and Security
  • Network topologies: Point-to-Point, Point-to-Multipoint, Peer-to-Peer
  • Number of channels:
    • XBee: 16 channels (Direct Sequence Spread Spectrum)
    • XBee-PRO: 12 channels (Direct Sequence Spread Spectrum)
  • Filtration options: PAN ID, Channel, 264 (64-bit) addresses
  • LEDs
    • Power: Glows green when external power is supplied (not active when battery powered to limit power drain)
    • Associate: Glows when unit is connected and associated on an RF network Controls
    • Device reset (internal push button) o Identification (internal push button): Relays identification to ConnectPort X gateway



Interfaces

  • Serial
    • RS-232 (DB-9M)
    • RS-232PH (DB-9M); power harvesting version
    • RS-485 (6-position wire terminal block) - Switch selectable between RS-422 half duplex, RS-422 full duplex and RS-485
    • Sensor (RJ-45)
  • USB
    • USB 2.0 Full Speed (with ESD protection); connects to host via captive 2-meter cable



Environmental

  • XBee 232, 485, Sensor, USB, Analog I/O and Digital I/O
    • Operating temperature: -40° C to 70° C
    • Powering options
      • Battery: -18° C to 55° C
      • External power: 0° C to 40° C
      • External power (hardened): -35° C to 74° C
  • XBee 232PH
    • Operating temperature: 0° C to 65° C



Power Requirements

  • XBee 232, 485, Sensor, Analog I/O and Digital I/O
    • Externally powered: 9-30 VDC, locking connector
    • Battery powered: 3 internal N cell batteries
  • XBee USB
    • Bus powered: +5V from USB bus
    • Power consumption during normal operation:
      • XBee: 70 mA
      • XBee-PRO: 70 mA (Rx) and 250 mA (Tx)
    • Power consumption during suspend mode:
      • XBee and XBee-PRO: 200 uA
  • XBee 232PH
    • Internal battery provides power when unit is operating and recharges from the serial port when in sleep mode
    • Requires a sleep/wake duty cycle as part of its normal operation.
    • Requires a fully functional serial port conforming to the RS-232C standard for optimal operation.
    • Sleep/wake duty cycle requirements will vary based on the current output of serial port
    • Serial ports with more than 14VDC output (rare) are not supported and may cause malfunction
    • Serial ports that provide hard power of 5 to 14VDC on one or more pins will allow the device to operate continually without a sleep/wake cycle



Dimensions

  • XBee 232, 485, Sensor, Analog I/O and Digital I/O
    • Width: 1.68 in (4.26 cm)
    • Height: 0.99 in (2.53 cm)
    • Length: 3.87 in (9.84 cm)
    • Weight: 2.29 oz (6.50 g)
  • XBee USB and 232PH
    • Width: 1.80 in (4.57 cm)
    • Height: 0.83 in (2.10 cm)
    • Length: 2.87 in (7.29 cm)
    • Weight: 1.60 oz (45.36 g)
