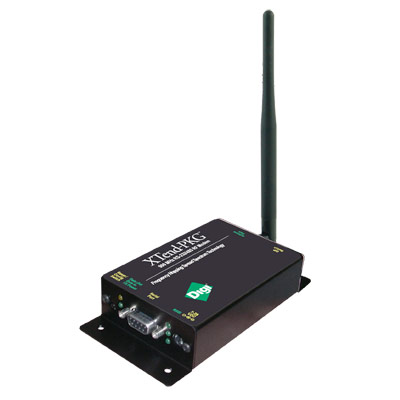

XTend® RF Modems

Descrição

{tab Descrição} Digi's XTend-PKG RF modems provide everything you need for out-of-the-box serial cable replacement, enabling quick wireless connectivity of electronic devices across a broad range of applications. Simply feed data into one modem and the data is transported to the other end of a long range wireless link. Data security is provided by 256-bit AES encryption (128-bit AES is available outside of North America). If more advanced functionality is needed, the modems support an extensive set of AT and binary commands.{tab Modelos}

XTend-PKG 900MHz	North America:	International:
XTend-PKG 900 MHz, industrial, RS-232/485	XTP9B-PKI-RA-NA	XTPH9B-PKI-RA-NA

{tab Características}

Performance

Indoor/Urban range (w/ 2.1 dB dipole antenna): Up to 3000 feet (900 m)
Outdoor RF line-of-sight range (w/ high gain antenna): Up to 40 miles (64 km)
Outdoor RF line-of-sight range (w/ 2.1 dB dipole antenna): Up to 14 miles (22 km)
Transmit power output (software selectable): 1mW - 1W (0 - 30 dBm)
Interface data rate: 10 - 230,400 bps (including non-standard baud rates)
Receiver sensitivity: -110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps)
Throughput data rate (software selectable): 9,600 or 115,200 bps
RF data rate: 10,000 bps (@9,600 bps throughput data rate)

Power Requirements

All models
- Power supply voltage: 7 - 28V
XTend-PKG-R
- Receive current: 110 mA
- Pin sleep power-down: 17 mA
- Serial port sleep power-down: 45 mA
- Idle current (various cyclic sleep intervals): 19 - 39 mA
- Transmit current (1 mW - 1W TX power output): 110 - 900 mA
XTend-PKG-U
- Receive current: 100 mA (Self Power)
- Pin sleep power-down: 17 mA
- Serial port sleep power-down: 45 mA
- Idle current (various cyclic sleep intervals): 21 - 35 mA (Self Power)
- Transmit current (1 mW - 1W TX power output): 88 - 480 mA
XTend-NEMA
- Receive current: 100 mA
- Pin sleep power-down: 17 mA
- Serial port sleep power-down: 45 mA
- Idle current (various cyclic sleep intervals): 19 - 39 mA
- Transmit current (1 mW - 1W TX power output): 110 - 900 mA

Networking & Security

Frequency: ISM 902 - 928 MHz
Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
Modulation: FSK (Frequency Shift Keying)
Supported Network Topologies: Peer-to-peer (no master/slave dependencies), point-to-point, point-to-multipoint and multidrop
Channel Capacity: 10 hop sequences share 50 frequencies
Encryption: 256-bit AES Encryption - AES algorithm meets Federal Information Processing Standard-197 (FIPS-197)

Antenna

XTend-PKG-R, XTend-PKG-U
- Connector: RPSMA (Reverse Polarity SMA)
- Impedance: 50 ohms unbalanced
XTend-NEMA (Weatherproof)
- Connector: MMCX
- Impedance: 50 ohms unbalanced

Environmental

XTend-PKG-R, XTend-PKG-NEMA
- -40º C to 85º C (industrial)
XTend-PKG-U
- 0º C to 70º C (commercial)

Certifications

All models
- FCC Part 15.247: OUR-9XTEND
- Industry Canada (IC): 4214A-9XTEND
NEMA enclosure
- IP 66/67, IP 66
- IK 08
- NEMA 1, 4, 4X, 6 (12 and 13)
- UL 94-5V, UL 508

Connection Options

RS-232/422/485, DB-9 (XTend-PKG-R)
USB (XTend-PKG-U)
RS-232/422/482, DB-9/screw terminal (XTend-PKG-NEMA)

Dimensions

XTend-PKG-R, XTend-PKG-U,
- Length: 2.75 in (6.99 cm)
- Width: 5.50 in (13.97 cm)
- Depth: 1.13 in (2.86 cm)
- Weight: 7.10 oz (200 g)
XTend-NEMA
- Length: 5.13 in (13.02 cm)
- Width: 7.13 in (18.10 cm)
- Depth: 1.50 in (3.81 cm)
- Weight: 12.30 oz (348.70 g)
